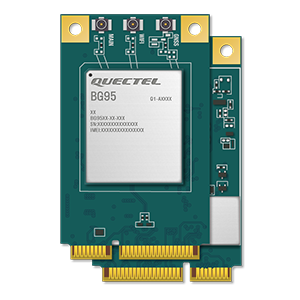

LPWA BG95-M3 Mini PCIe

  • Multi-band LPWA module
  • 51.0mm × 30.0mm × 4.9mm
  • Mini PCIe package
  • Max. 588Kbps DL / 1119Kbps UL under Cat M1
  • Extended temperature range of -40°C to +80°C
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Global coverage with LTE Cat M1/Cat NB2/EGPRS
  • Easy migration from Quectel LTE Mini PCIe modules
  • ARM A7 Processor
  • Multi-constellation GNSS receiver
  • USB 2.0 interface
  • Supports DFOTA
  • Fast time-to-market: reference designs, evaluation tools and timely technical support minimize design and development efforts
  • Robust mounting and interfaces

Overview

The BG95-M3 Mini PCIe is a multi-band LTE Cat M1/Cat NB2/EGPRS module which achieves maximum downlink rates of 588Kbps and uplink rates of 1119Kbps. It has a highly integrated and cost-effective standard PCI Express® Mini Card form factor measuring 51.0mm × 30.0mm × 4.9mm which allows integrators and developers to benefit from its mechanical intensity and low power consumption and design their applications with ease.

A rich set of internet protocols, industry-standard interfaces and abundant functionalities (e.g. USB drivers for Windows 7/8/8.1/10, Linux etc.) allow the module to serve a wide range of IoT applications such as wireless POS, smart metering, asset tracking and more.

Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here

Product Brochure

Quectel-Product-Brochure-V7.7.pdf

Download

Documentation and resources

  • Quectel_WCDMA & LTE_Linux_USB_Driver_User_Guide_V1.8

    1.10 MB

    Quectel_Windows_USB_Driver(A)_Customer_V1.0_EN

    37.45 MB

    Quectel_Android&Linux_CMUX_Driver_User_Guide_V1.1

    373.29 KB

  • Quectel_Mini_PCIe_EVB_User_Guide_V1.2

    1.73 MB

  • Quectel_BG95-M3_Mini_PCIe_Hardware_Design_V1.1

    1.06 MB

  • Quectel_Antenna_Design_Guide_V3.3

    1.15 MB
