GNSS L26-P (raw data only)

  • GNSS module
  • 12.2mm × 16.0mm × 2.3mm
  • GPS, GLONASS, BDS, Galileo and QZSS
Please enable JavaScript in your browser to complete this form.
Checkboxes

Have a question? Contact us

Key features

  • Built-in LNA
  • Integrated 6-axis sensor
  • Supports both GNSS and IMU raw data function
  • Supports DDGPS (RTCM)/SBAS (WAAS/EGNOS/MSAS/GAGAN)

Overview

The L26-P is a single band, multi-constellation GNSS raw data receiver for high precision positioning applications. The module has an integrated 6-axis sensor (IMU), and it can output GNSS raw data concurrently with the sensor raw data. The firmware also supports an option to enable the output of standard NMEA messages. The module can acquire and track GPS, GLONASS, BDS, Galileo and QZSS signals and the built-in LNA ensures better performance in challenging signal conditions scenarios. Compared with GPS only receivers, enabling multiple GNSS systems increases the number of visible satellites, and it will lead into enhanced performance. The ability to use the GNSS raw data in collaboration with the IMU data on an external position engine (customer MCU side) makes this module very attractive for many applications.

Its superb performance makes L26-P ideal for base stations, automotive, industrial and consumer applications.

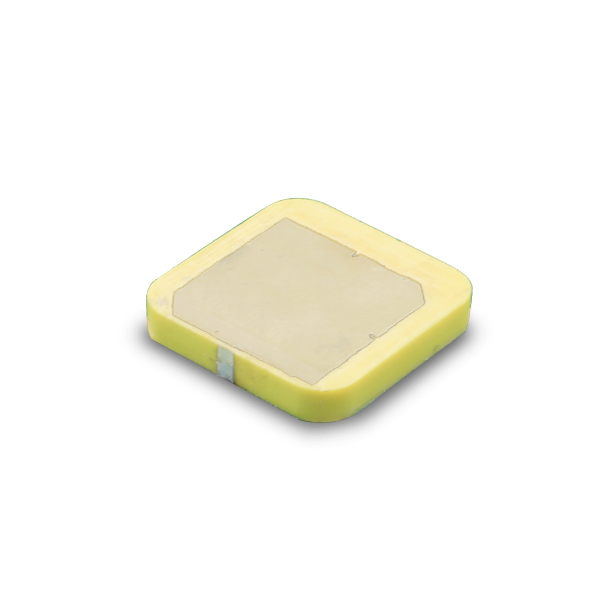

Simplify deployment by sourcing antennas at the same time as your modules – see our wide range here

Product Brochure

Quectel-Product-Brochure-V7.7.pdf

Download

Documentation and resources

  • Quectel_L89&L26-DR&L26-P&L26-T_AGNSS_Application_Note_V1.0

    300.58 KB

  • Quectel_Android_GNSS_Driver_User_Guide_V1.3

    446.63 KB

  • Quectel_L26-DR&L26-P&L26-T&LC98S_Series_GNSS_Protocol_Specification_V1.3

    853.76 KB

  • Quectel_L26-P&L26-T_Hardware_Design_V1.2

    1.33 MB

  • Quectel_L26-DR&L26-P&L26-T&L89&LC98S_Firmware_Upgrade_Guide_V1.0

    224.24 KB
