IoT antennas are essential in connecting any wireless device to communications networks – without an antenna, it can’t be wireless.

The crucial consideration for IoT device designers when planning their solutions is what type of antenna is required: be it for 5G or GNSS connectivity, or a variety of network types; size or weight constraints; the need for protection against the elements; or minimum demands for efficiency and gain. Whether an embedded antenna can be sited on the device PCB, limiting the impact on device size and aesthetics – or whether an external antenna is required to limit the risk of interference and maximize accessibility post-build – can also make the difference in the ultimate success of an IoT device.

These decisions however are often neglected until late in the development process, resulting in unnecessary compromises and sub-optimal siting of antennas that could have been avoided with careful design planning. Quectel offers not only a wide range of embedded and external IoT antennas to support connectivity of all kinds, but can support its customers from the design stage all the way to testing and certification, and beyond to post-deployment technical support. Sourcing IoT antennas from a single supplier alongside modules and certifications can vastly reduce cost and time-to-market, simplifying the complex processes between conception and the mass market. You can view a breakdown of our rapidly growing antenna portfolio in the tables below, and click through for detail on the model of your choosing.

  • Image Frequency Mounting Dimensions See more
    5G: 700–960MHz, 1710–2690MHz, 3300-5000MHz

    5G MIMO: 1710–2690MHz, 3300–5000MHz
    Adhesive 78.6mm x 21.4mm
    LTE/5G: 600-6000MHz Adhesive 237mm x 22mm
    5G: Wi-Fi: 2400–2500MHz

    GNSS: 1575.42MHz
    SMD 3.2mm × 1.6mm × 0.5mm
    5G: Wi-Fi: 5150–5850MHz

    GNSS: 1575.42MHz
    SMD 3.2mm × 1.6mm × 0.5mm
  • Image Frequency Mounting Dimensions See more
    LMHs: 600–960MHz, 1400–6000MHz

    MHs: 1400–6000MHz

    GNSS: 1166–1186MHz, 1559–1606MHz
    Screw 204mm x 86.6mm x 31mm
    LMHs: 600–960MHz, 1400–6000MHz

    MHs: 1400–6000MHz

    GNSS: 1164–1189MHz, 1559–1606MHz
    Screw Φ103.5mm × 42.5mm
    LTE Main & Div: 700–2700MHz

    Wi-Fi/BT: 2400–5850MHz

    GNSS: 1561-1575.42MHz, 1602MHz
    Screw Φ120mm × 43mm
    LMHs: 600–960MHz, 1400-6000MHz

    GNSS: 1164–1189MHz, 1559–1606MHz
    Screw Φ162mm x 56mm
    698-960MHz, 1710-2690MHz Screw Φ81mm × 27.5mm
    LTE: 698-960MHz, 1710-2690MHz

    GNSS: 1558–1581MHz
    Screw Φ81mm × 14.5mm
    Wi-Fi/BT: 2400-2500MHz,5000-6000MHz Screw Φ46mm × 15mm
    LTE: 698–960MHz, 1700–2700MHz

    Wi-Fi/BT: 2400–2500MHz

    GNSS: 1561-1575MHz
    Screw Φ54mm × 91mm
    LTE: 700-960MHz, 1700-2700MHz

    Wi-Fi/BT: 2400-2500MHz, 5150-5850MHz

    GNSS: 1559-1606MHz
    Adhesive 143.73mm × 51.33mm × 15mm
    LMHs: 600–960MHz, 1400–6000MHz

    MHs: 1400–6000MHz

    GNSS: 1164–1189MHz, 1559–1606MHz
    Adhesive 264.6mm x 157.6mm x 30.5mm
    5G: 700–960MHz, 1710–2690MHz, 3300-5000MHz

    5G MIMO: 1710–2690MHz, 3300–5000MHz
    Adhesive 140mm × 70mm × 30.2mm
    LTE: 700-960MHz, 1710-2690MHz

    GNSS: 1575.42±5MHz,1561.098±5MHz
    Adhesive Ø 84mm × 17.5mm
    LTE: 698-960MHz, 1710-2690MHz

    Wi-Fi/BT: 2400-2500MHz
    Adhesive Ø 81mm × 14.5mm
    LTE: 698-960MHz; 1710-2690MHz

    GNSS: 1556–1581MHz
    Adhesive Ø 84mm × 17.5mm
    LTE: 698-960MHz; 1710-2690MHz

    GNSS: 1575.42±5MHz; 1561.098±5MHz
    Adhesive Ø 84mm × 17.5mm
    5G: 410-470MHz, 617–960MHz, 1420-1520MHz, 1710-2690MHz, 3300–3800MHz, 4000-6000MHz Pole/Wall/Suction 186mm x 176mm x 100.5mm
    5G: 410-470MHz, 617-2690MHz, 3300-6000MHz Pole/Wall/Suction 186mm x 176mm x 150mm
  • Image Frequency Mounting Dimensions See more
    1100–6000MHz FPC 49mm × 13mm
    1500–6000MHz FPC 49mm × 13mm
    600–6000MHz FPC 90.3mm × 15.3mm
    410–470MHz, 700–960MHz, 1400–6000MHz Adhesive 150mm × 16.2mm × 0.6mm
    410–470MHz, 700–960MHz, 1400–6000MHz Adhesive 138.8mm × 16.2mm
    1427-5850MHz SMD 20mm x 10mm x 3mm
    698–3800MHz SMD 25mm × 7mm × 3mm
    698–3800MHz SMD 25mm × 7mm × 3mm
    600–960MHz, 1427–1707MHz, 1710–2170MHz, 2300–2700MHz, 3300–5000MHz, 5100–6000MHz SMD 40mm × 7mm × 3mm
  • Image Frequency Mounting Dimensions See more
    600–6000MHz Terminal 221mm × 26.95mm × 13.5mm
    600–6000MHz Terminal 152.4mm × 21.79mm × 14.49mm
    700–960MHz, 1710–2690MHz, 3300–5000MHz Terminal 200mm × 21mm × 8mm
    410–470MHz, 617–960MHz, 1427–6000MHz Terminal 225mm × 54.5mm × 13mm
    700–960MHz, 1710–2690MHz, 3300–5000MHz Terminal Φ 20mm x 300mm
    699–5000MHz Terminal 190mm × 5.6mm × 16mm
    700–2700MHz, 3300–5000MHz Magnetic 234mm × Φ 60mm
    699–5000MHz Magnetic 221mm × Φ 61mm
    700–960Mhz, 1710–2690Mhz, 3300–5000Mhz Magnetic 285mm x 45mm
  • Image Frequency Mounting Dimensions See more
    600–2700MHz PCB 50mm × 25mm × 0.85mm
    700–960MHz; 1710-2170MHz; 2300-2690MHz PCB 40mm × 15mm × 2mm
    698–960MHz, 1710–2690MHz FPC 96mm x 21mm x 0.2mm
    700-2690MHz FPC 30mm × 20mm × 0.13mm
    690–2700MHz FPC 50mm × 25mm × 0.13mm
    600-960MHz, 1710-2690MHz SMD 36mm x 9mm x 3mm
    700-960MHz, 1710-2690MHz SMD 28mm x 8mm x 3mm
    698–960MHz, 1710–2690MHz SMD 35.0mm × 8.5mm × 3.0mm
  • Image Frequency Mounting Dimensions See more
    700–2700MHz Magnetic 88mm × Φ30mm
    700–2700MHz Magnetic 318mm × Φ30mm
    690–960MHz; 1710-2690MHz Magnetic 112mm × Φ29.8mm
    450–470MHz, 700–960MHz, 1710–2690MHz Screw 149.73mm × 49.91mm × 35.5mm
    700–2700Mhz Terminal 115.4mm × 17.5mm × Φ10.2
    700–2700MHz Terminal 114mm × Φ13mm
    824–2700MHz Terminal 190mm × Φ16mm
    700–960MHz, 1710–2690MHz Terminal 196.2mm × 16mm x 13mm
    700–2700Mhz Terminal 194.3mm × 15.95mm
    824–960MHz, 1710–2170MHz Terminal 52mm × Φ10mm
  • Image Frequency Mounting Dimensions See more
    1575.42–1602MHz ±1.5 SMD 25mm × 25mm × 4mm
    1575.42 ±1.5MHz SMD 12mm x 12mm x 2mm
    1559-1606MHz SMD 3.2mm × 1.6mm × 0.6mm
    1176.45–1278.75MHz, 1575.42MHz SMD 5mm × 3mm × 0.5mm
    1559–1609MHz SMD 7.0mm x 5.8mm x 0.8mm
    1575.42–1602MHz ±1.5 SMD 18mm × 18mm × 4mm
    1559–1609MHz FPC 61.5mm × 11.24mm
    1560–1605MHz FPC 61.5mm × 11.24mm
    1160–1270MHz, 1560–1605MHz FPC 74.56mm × 24.5mm × 0.13mm
    1559–1606MHz Pin 12mm × 12mm × 4mm
    1559–1592MHz Pin 10mm × 10mm × 4mm
    1575–1600MHz Pin 18.4mm × 18.4mm × 4mm
    1575.42MHz ±3, 1602MHz Pin 25mm × 25mm × 4mm
    1176MHz, 1575MHz Pin 18mm × 18mm × 4mm +

    25mm × 25mm × 4mm
    1561MHz ±2, 1575.42MHz ±2 Pin 18mm × 18mm × 2mm
    GPS L1: 1575.42MHz

    BD B1: 1561.098MHz

    GLONASS L1: 1602MHz

    GALILEO E1:1575.42MHz
    Pin 15mm × 15mm × 4mm
    1561MHz, 1575MHz Pin 13mm × 13mm × 4mm
    1559–1605MHz Pin 35mm × 35mm × 4mm
    L5: 1166–1186MHz

    L1: 1559–1606MHz
    Pin 38mm × 38mm × 10mm +

    25mm × 25mm × 6mm
    L5: 1166–1186MHz

    L1: 1559–1606MHz
    Pin 45mm × 45mm × 10.12mm
    1616–1626.5MHz Pin 25mm × 25mm × 4mm
    L5: 1176.45MHz

    L1: 1575.42MHz
    Pin 52mm × 52mm × 9.9mm
    1160–1270MHz, 1560–1605MHz Adhesive 43mm × 24mm × 0.12mm
    GPS L5: 1176.45MHz

    GPS L1: 1575.42MHz

    GLONASS L1: 1602MHz
    Cable 25mm × 25mm × 4mm +

    18mm × 18mm × 4mm
    1560-1601MHz Cable 25mm × 25mm × 6.3mm
    1575–1602MHz Cable 15mm × 15mm × 6.2mm
    L5: 1166-1186MHz

    L1: 1559-1606MHz
    Cable 45mm x 45mm x 6mm +

    40mm x 40mm x 2mm
    1565–1606 MHz Cable 18mm × 18mm × 6.5mm
    1559-1577MHz Cable 18mm × 18mm × 6.5mm
    1575-1602MHz Cable 15mm × 15mm × 6.2mm
    1575.45MHz ±1.5 Cable 10mm × 10mm × 6.5mm
    1559-1577MHz Cable 18mm × 18mm × 6.3mm
    1575.42-1602MHz Cable 25mm × 25mm × 8.25mm
    1575MHz ±1.5 Cable 10mm × 10mm × 6.3mm
  • Image Frequency Mounting Dimensions See more
    1555–1605MHz Terminal 50mm × Ø10mm
    1561–1602MHz Terminal 52mm × Ø10mm
    1164–1189MHz, 1559–1606MHz Screw mount Φ 65mm × 45mm
    GPS: L1/L2/L5

    BDS: B1/B2/B3

    GLONASS: L1/L2

    Galileo E1/E5a/E5b/E6 + L-band
    Screw mount Φ 165mm × 68mm
    1166–1227MHz, 1559–1606MHz Magnetic Φ 146.4mm × 65mm
    1166–1227MHz, 1559–1606MHz Magnetic Φ 146.4mm × 65mm
    B1: 1561MHz, L1: 1575MHz Magnetic 50.3mm × 38.4mm × 17.1mm
    1176-1207MHz, 1561-1602MHz Magnetic 61.5mm × 56.5mm × 23mm
  • Image Frequency Mounting Dimensions See more
    2400–2500MHz SMD 3.2mm × 1.6mm × 0.5mm
    2400–2500MHz SMD 5.2mm × 2mm × 1.2mm
    2400–2500MHz, 5150–5850MHz SMD 5mm × 2mm × 1mm
    2400–2500MHz, 5150–7150MHz SMD 8mm x 6.6mm x 1.6mm
    2400–2500MHz, 5150-5850MHz, 5925-7125MHz FPC 28.9mm x 11mm
    2400–2500MHz, 5150–5850MHz, 5925–7125MHz FPC 38mm × 7mm
    2400–2500MHz, 5150–5850MHz, 5925–7125MHz FPC 29.98mm × 30.85mm
    2400–2500MHz, 5150–5850MHz Adhesive 38.9mm × 9mm × 0.12mm
    2400-2500MHz, 4900-5850MHz, 5925-7125MHz Adhesive 22.9mm × 11.7mm
    2400-2500MHz, 4900-5850MHz, 5925-7125MHz Adhesive 22.9mm × 11.7mm
    2400-2500MHz, 4900-5850MHz, 5925-7125MHz Adhesive 37.8mm × 7.5mm
  • Image Frequency Mounting Dimensions See more
    2400–2500MHz Terminal 77.4mm x Ø30mm
    2400–2500MHz, 5150–5850MHz Terminal 200mm x Ø13mm
    2400–2500MHz, 5150–7150MHz Terminal 109mm x Φ10mm
    2400–2500MHz, 5150–5850MHz Terminal 50mm x 17mm x 10.5mm
    2400–2500MHz, 5150–5850MHz Terminal 52mm x 10.5mm
  • Image Frequency Mounting Dimensions See more

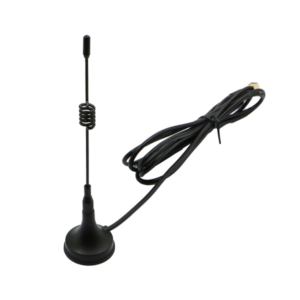

    465-475MHz Magnetic Ø30mm x 131mm
    450-470MHz Terminal Ø10mm x 109mm
  • Image Frequency Mounting Dimensions See more
    790–960MHz SMD 40.99mm × 6.68mm × 3.99mm
    863–870MHz SMD 5mm × 3mm × 0.5mm
    863–870MHz SMD 10mm × 3.2mm × 0.5mm
    902–928MHz SMD 10mm × 3.2mm × 0.5mm
    433–435 MHz Spring 29mm × 7mm × 7mm
    791-960MHz SMD 20mm x 11mm x 1.6mm
    791-960MHz SMD 20mm x 11mm x 1.6mm
